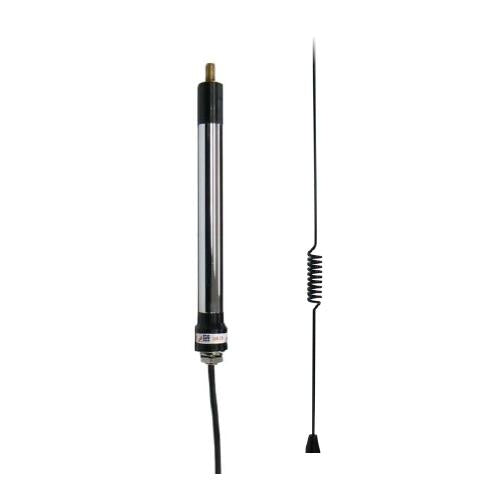

ZCG Scalar 477 MHz 6.6 dBi Elevated Feed UHF CB Antenna (90cm, Australian Made)

High quality brass, delrin, chrome and stainless steel components make the ZN4 models ideal for use in harsh marine and industrial environments.  Ideal for either hilly or flat terrain and suitable for all Uniden, GME, Icom and Vertex UHF CB radios, the stainless steel spring included dampens vibrations while travelling and maintains the antenna in a vertical position for the optimum receive and transmit performance.

These aussie made antennas can be secured into any bracket with minimum 12.7 mm diameter hole. The threaded mount stud with split nut and washer is a unique ZCG design that makes removing the nut and fitting the antenna into a mount bracket quick and easy.

4.5 metres of RG58 low loss stranded cable bottom exits through the spring. An FME Female connector is fitted to the cable and an FME Male to UHF Male adaptor is also supplied to make connection to your UHF CB radio simple.

- Features -

Durability
Forged of black detachable powder coated stainless steel whip with phasing coil with 6.6 dBi gain.

Design
Lighter design parallel stainless steel spring.

- Specifications -

Physical

• Weight - 0.5 kg
• Height - 0.9 m
• Cable - RG58 (4.5 m)

Operating

• Frequency - 477 MHz UHF
• Gain - 6.6 dBi
• Power - 25 W (max)
• Impedance - 50 Ohms
